Rectangle Pattern: How to Trade the Range and Its Breakout

The rectangle pattern is a chart pattern in which price moves sideways between two horizontal lines: resistance across similar highs and support across similar lows, with at least two touches on one line and three on the other. It ends when price closes outside the box, and traders follow the direction of the breakout.

This guide explains how to identify a rectangle, how to trade the breakout with an entry, a stop loss and a price target, and what happened next. Our test bench detected 2,981 upward and 2,386 downward rectangle breakouts on daily charts of stocks, ETFs, indices, commodities, forex and crypto, plus 8,549 on hourly charts, and compared each one with the same setup on random dates.

What is the rectangle chart pattern?

A rectangle pattern is a trading range drawn on a price chart. Buyers defend a support level, sellers defend a resistance level, and price bounces between the two until one side gives way. Traders also call it a consolidation zone or a congestion area. It belongs to the family of classical chart patterns described by Edwards and Magee in Technical Analysis of Stock Trends (1948), next to triangles, flags and the double top.

The pattern consists of at least five alternating touches of two levels, two on one boundary and three on the other, denoting a balance between supply and demand. Inside the pattern the price can bounce for weeks, and the pattern is considered complete only once a candle closes beyond one of the two lines.

The rectangle pattern is neutral while it forms: nothing in the shape tells you which way it will break. Textbooks call it a continuation pattern when it forms during a trend and price leaves it in the direction of the current trend, and a reversal pattern when price leaves it on the opposite side. Our bench does not require a prior trend: it records every rectangle pattern and publishes the upward and downward breakouts separately.

The chart above is not drawn by hand. It is the median shape of the rectangle patterns our bench detected on daily charts across all markets with an upward breakout: three lows and two highs at nearly the same levels, then a close above the top.

How to identify a rectangle pattern on a chart

To identify a rectangle pattern, look for a sideways market where price touches the same high and the same low several times. Look left on the chart as well: previous highs and lows can mark where a range will start. Our bench uses a rule a computer can apply without judgment: four to six alternating swing points (four need a fifth touch of a line), each one a local extreme, with both horizontal lines flat.

Defining support and resistance levels

Draw one horizontal line at the price level of the highs and another across the lows. The highs do not need to be identical: on our bench, a line counts as flat if it moves less than 15% of the height of the range across the pattern, and each swing point must sit within 10% of that height from its line on a textbook pattern, 15% on the looser standard grade. A swing point only counts once price has moved away from it by at least twice the average true range (ATR), so small price movements do not create false touches. The minimum is two touches on one side and three on the other: five touches in all, and the fifth does not have to be a confirmed swing point.

The pattern is completed when a candle closes outside the rectangle. An intraday attempt above resistance that ends back inside is a failed breakout, not a signal. On daily charts, only 59.0% of the rectangles we found produced a valid breakout within the time our rule allows; on hourly charts, 48.7%. A large share of the boxes our bench found never gave a clean signal.

Analyzing volume during the consolidation phase

Classical analysis expects volume to shrink inside the range and to increase on the breakout. We measured the second half of that idea on hourly charts: upward breakouts on volume above 1.5 times the average reached the 2:1 target 22.1% of the time, against 23.6% on normal volume. High volume did not improve the result. Treat volume as information, not as a filter that changes the odds.

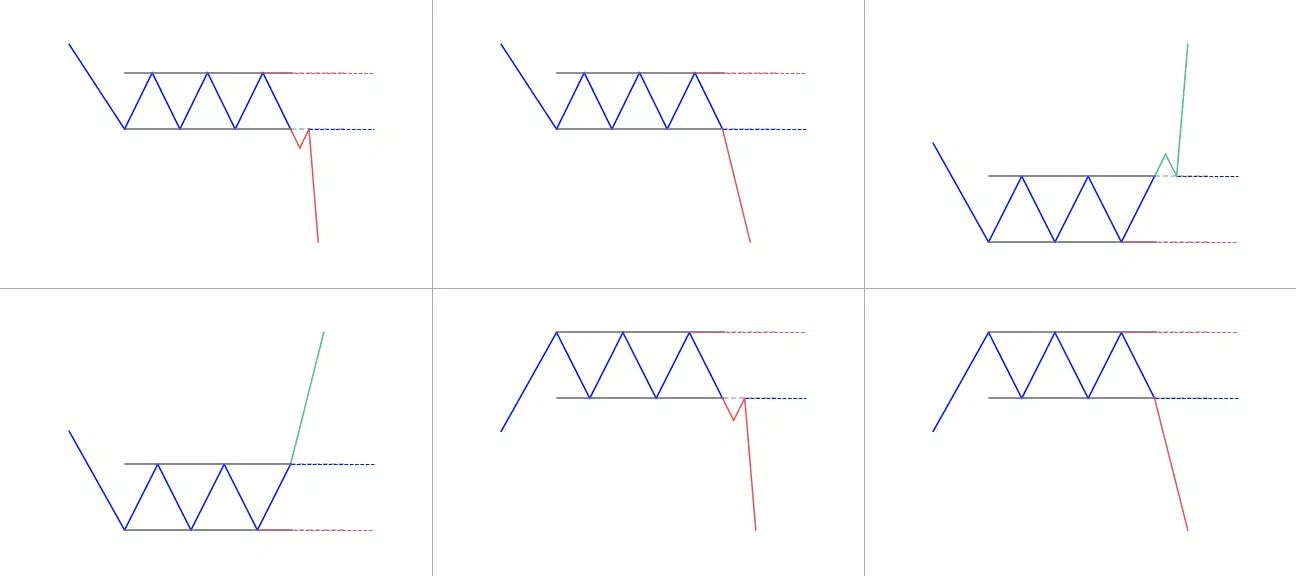

Bullish vs. bearish rectangle patterns

The two versions have the same shape. Only the trend around the box and the direction of the breakout are different.

Understanding the bullish rectangle continuation

A bullish rectangle pattern forms during an uptrend: price pauses, moves sideways, then closes above resistance. The breakout indicates that buyers have absorbed the supply at the top of the range. The classic setup buys that close, with a stop under the bottom line.

Understanding the bearish rectangle continuation

A bearish rectangle pattern forms during a downtrend and ends with a fall below support, sometimes called a breakdown. The setup sells that close, with a stop above the top line. On our data, downward breakouts did worse than upward ones in absolute terms, but random dates on the same assets did just as badly: shorting stocks loses on average because stocks rise over time, with or without a pattern.

How to trade the rectangle pattern effectively

There are two ways to trade a rectangle pattern: trade the breakout, or trade the range while it lasts. Both need a stop loss defined before the entry.

Setting up your breakout entry

Retest entries (not tested)

A more patient entry waits for price to come back to the broken line and enters on the retest, when old resistance acts as support. Our data shows why this happens: on hourly charts, the bar after an upward breakout ended higher only 44.6% of the time, against 48.2% for random bars. Within 20 bars, price came back to the breakout level after 71.2% of these hourly upward breakouts. A retest entry gives a closer stop, but some breakouts never come back and the move is missed. We have not tested a retest entry: the choice is a matter of preference.

Range trading strategies within the boundaries

Before the breakout, a range trade buys near support and sells near resistance, with a stop just beyond the box. This works only while the range remains intact, and it is the opposite bet of the breakout trade. Keep the size small: the move that ends a range trader is the breakout itself.

How to calculate price targets and stop losses

Measuring the height of the rectangle

The measured move takes the height of the pattern (resistance minus support) and projects it from the breakout point. A range between 20 and 24 that breaks upward gives an objective at 28. This is a rough guide, not a promise: the move after the breakout can exceed it or fall short. Our bench uses twice the risk instead, which is farther away: the stop sits at the opposite side of the pattern, so the risk is close to the height of the box and the target about twice that height.

Placing stop loss orders to manage risk

The classic stop is beyond the opposite side of the box: below support for a long position, above resistance for a short. Given that distance, the stop is wide, so size each position on it: the maximum loss is then 1 R by design. A tighter stop at the middle point of the range cuts that distance in half, accepting more stopped trades. On daily charts, losing trades hit our stop after a median of 31 bars on upward breakouts and 28 bars on downward ones, and of the upward trades that hit their stop, 14.3% had first been up 1 R.

Common mistakes to avoid when trading rectangles

• Entering on an intraday break before the candle has closed beyond the box. Our bench requires a close beyond the line, whatever the color of the candle.
• Drawing a rectangle on fewer than five touches, or on lines that slope: with sloping lines it is a channel or a triangle.
• Assuming the breakout will follow the prior trend. On daily charts, the break followed the prior trend in fewer than half the cases: after a rise, 1,429 rectangles broke up and 1,300 broke down; after a decline, 1,084 broke down and 1,544 broke up. The side of the break is no signal by itself.
• Using a stop inside the range that is too tight to survive the step back after the breakout described in the retest section.
• Choosing tall rectangles for the bigger move: on hourly charts, tall ones reached the 2:1 objective less often (12.9% for downward breakouts, against 24.2% for short ones), because the stop and the target are farther away.

Rectangle pattern vs. other technical patterns

Differences between rectangles and flags

A flag is a small range that slopes against a sharp move, called the pole. A rectangle is flat and needs no pole. On daily charts, the bull flag reached its 2:1 objective 31.8% of the time against 33.7% on random dates: like the rectangle, no clear edge. The handle of a cup and handle can also look like a small rectangle.

Rectangles versus channels and triangles

A channel has two parallel lines that slope up or down; a rectangle has two flat ones. A symmetrical triangle has converging lines, an ascending triangle has a flat top and rising lows, and a rising wedge has two rising lines that converge. On daily charts, the ascending triangle with an upward breakout reached its objective 33.0% of the time against 33.6% on random dates. A rectangle with three tops or three bottoms looks like a triple top or a triple bottom: the name depends on the trend before it and on the side that breaks.

Reliability and success rate of rectangle patterns

The rectangle pattern is not reliable on its own: on every market and timeframe we tested, the average result per trade of the breakout trade did not differ from the same trade on random dates by a margin that survives our correction. The best lead, the 10-bar move after downward breakouts on hourly charts, passes a simple test but not our correction. Here are the numbers.

Read the table in pairs of columns. On daily charts, 54.1% of upward breakouts were higher 10 days later, against 54.0% for random days on the same assets. The 2:1 setup reached its target 21.0% of the time against 23.1% for the same entry, stop and objective on random dates, with an expected value of +0.18 R per trade before costs against +0.22 R. A positive expectancy that random dates match or beat is not an edge: it is the upward drift of stocks. Downward breakouts had an expectancy of −0.19 R, against −0.22 R for random dates. On daily crypto, only 47 of the 111 downward breakouts became closed trades: almost all the others were so tall that a 2:1 target would sit at or below a zero price, so no trade was opened. On daily upward breakouts, the maximum favorable move had a median of 0.87 R.

Upward breakouts on ETFs look like an exception at first: 70.6% were higher 10 days later against 57.0% for random days, an excess return of +0.41% (95% confidence interval −0.06% to +0.88%). Zero is inside that interval, so the gap does not pass even a simple test. It rests on 109 breakouts on 39 funds, and the average result per trade of the 2:1 setup itself (+0.36 R against +0.40 R on random dates) is no better than chance: the row reads No clear edge. Upward breakouts on indices showed a similar raw tendency (70.7% against 57.4%, for an average excess return of +0.10% over the rest of the market), with the same verdict, no clear edge. The closest thing to a lead is downward breakouts on hourly crypto: the 2:1 short reached its target 19.5% of the time against 17.7% on random dates, for +0.11 R against +0.03 R, rated No clear edge: the gap is within the margin of error. Their 10-bar move reads promising: an excess return of +0.16% over the rest of the market that passes a simple test, not our correction for multiple testing. That is a lead to test, not a system. On direction, daily downward breakouts, all markets together, are rated No clear edge: 47.6% were lower 10 days later against 46.1% for random days, an excess return of +0.30% (95% interval +0.01% to +0.61%), a gap too fragile to count: it does not hold in both halves of the history.

How often does the pattern occur?

The pattern appears rarely once both lines must be flat: one upward breakout every 2,844 daily bars and one downward breakout every 3,553 across all markets. On daily charts, winning trades took a median of 51 bars to reach the target on upward breakouts and 36 bars on downward ones.

Does the larger trend help?

On hourly charts, downward breakouts below the 200-period moving average had an expectancy of +0.12 R, against −0.01 R above it. This breakdown is descriptive and not corrected for the number of tests, so treat it as a hint to test, not as a rule.

Real examples from our test bench

The gallery in this section shows real rectangle patterns picked by our bench (best and worst results, textbook shapes, most recent, random draws), with their actual outcome. The cases written up below are on daily crypto charts.

Case study: a breakout that reached its target

BNB/USDT traded between about 257 and 300 from early September to mid-October 2022, forming a rectangle with two highs (300 on September 12 and 298.2 on October 4) and three lows (258.6 on September 7, 256.7 on September 19 and 256.8 on October 13). The top line drawn through those highs had eased to about 296.2 by October 28, 2022, when price closed above it at 297.9: entry there, stop at 255.89, the bottom line that day, 2:1 objective at 381.93. It was hit on November 8, 2022, 11 sessions later, and BNB stood 13.1% higher 10 days after the breakout.

Case study: a breakout that failed

AVAX/USDT formed a rectangle between about 29.2 and 39.9 from mid-April to early May 2024. Its bottom line rose while its top line eased slightly: by May 20, 2024 the top line stood at about 39.82 and the bottom line at 31.34, and price closed above the top line at 40.13. Entry there, stop at 31.34, objective at 57.72. Price drifted back into the box and hit the stop on June 7, 2024, a full 1 R loss; ten days after the breakout, AVAX was down 10.3%.

Case study: a breakdown that ran out of time

TRX/USDT ranged between about 0.031 and 0.044 from late June to late July 2018. By August 2, 2018 the support line stood at about 0.03198 and the resistance line at 0.04476, and price closed below support at 0.03128. Short entry there, stop at 0.04476, objective at 0.00432. Ten days later TRX was 28.1% lower, in favor of the position. Neither the stop nor the objective was hit within 100 days, and the trade was closed at the time limit with a gain of 0.61 R: a winner, but well short of the planned move.

Tools to find and draw rectangles

No indicator is needed: any charting platform lets you draw two horizontal lines or a box. Some also search for chart patterns automatically. TradingView, for example, documents its automatic chart pattern rectangle in its support pages: the pattern is displayed on the chart with a label once it is detected. Whatever the tool, check its definition (number of touches, how flat the lines must be), and set alerts on both lines. An alert that triggers on a close beyond the box is closer to a real breakout than one that triggers on a touch, and a trigger on both sides keeps you neutral until the market finds its direction.

Frequently asked questions about the rectangle pattern

Summary of key points

• A rectangle pattern is a sideways range between flat support and flat resistance, touched at least twice on one line and three times on the other.
• The breakout is the first close beyond the box; the stop goes at the opposite side.
• On 2,981 upward and 2,386 downward daily breakouts, the 2:1 trade did about as well as the same trade on random dates.
• No result passed our correction; the closest lead, the 10-bar move after downward breakouts on hourly crypto, passes a simple test but not our correction and is not an established edge.

Trading involves risk. Treat the rectangle as a way to define where you are wrong, not as a reason to trade. Size each position on the distance to the stop, and keep the risk small. This page is education provided for information only, not investment advice or a recommendation to buy or sell.
